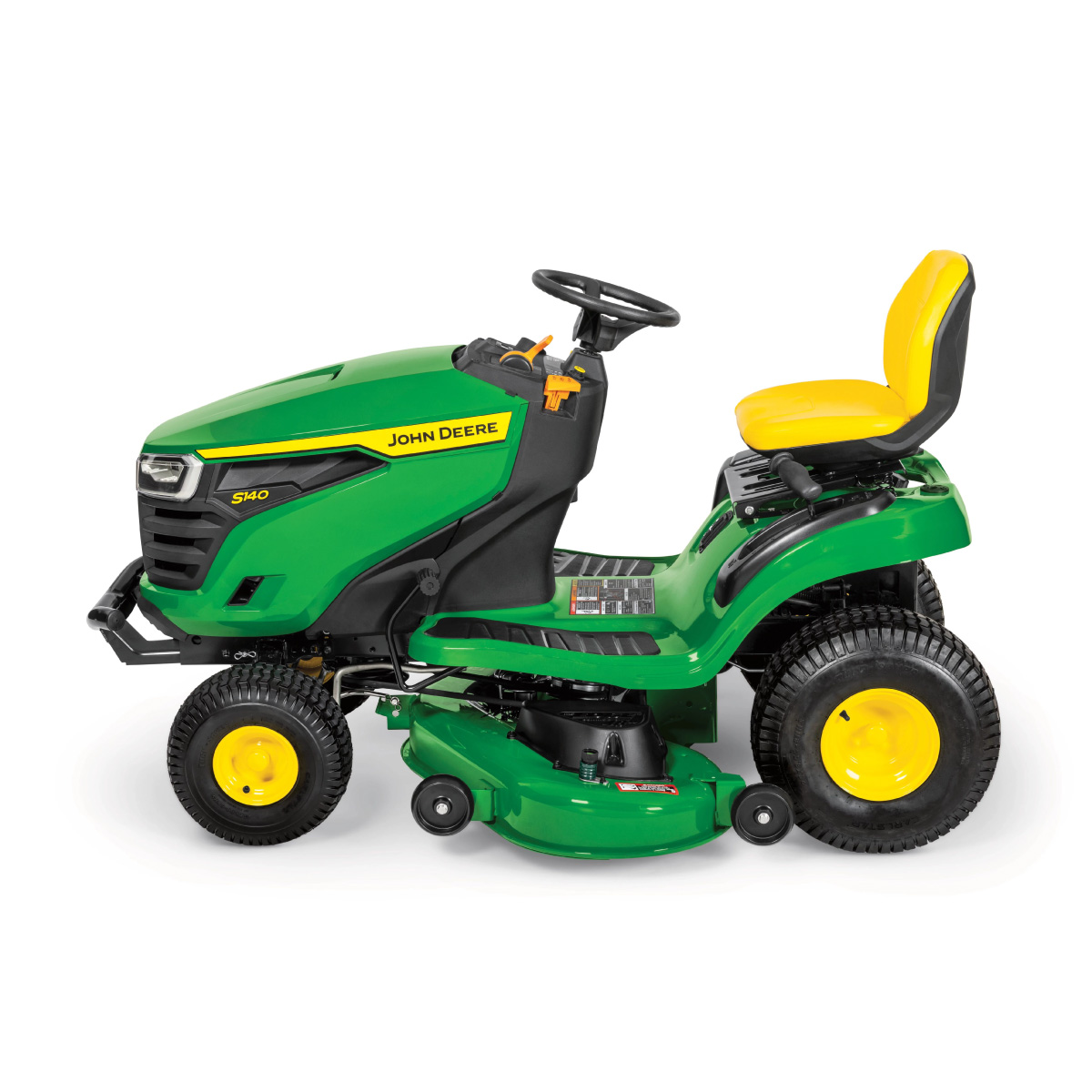

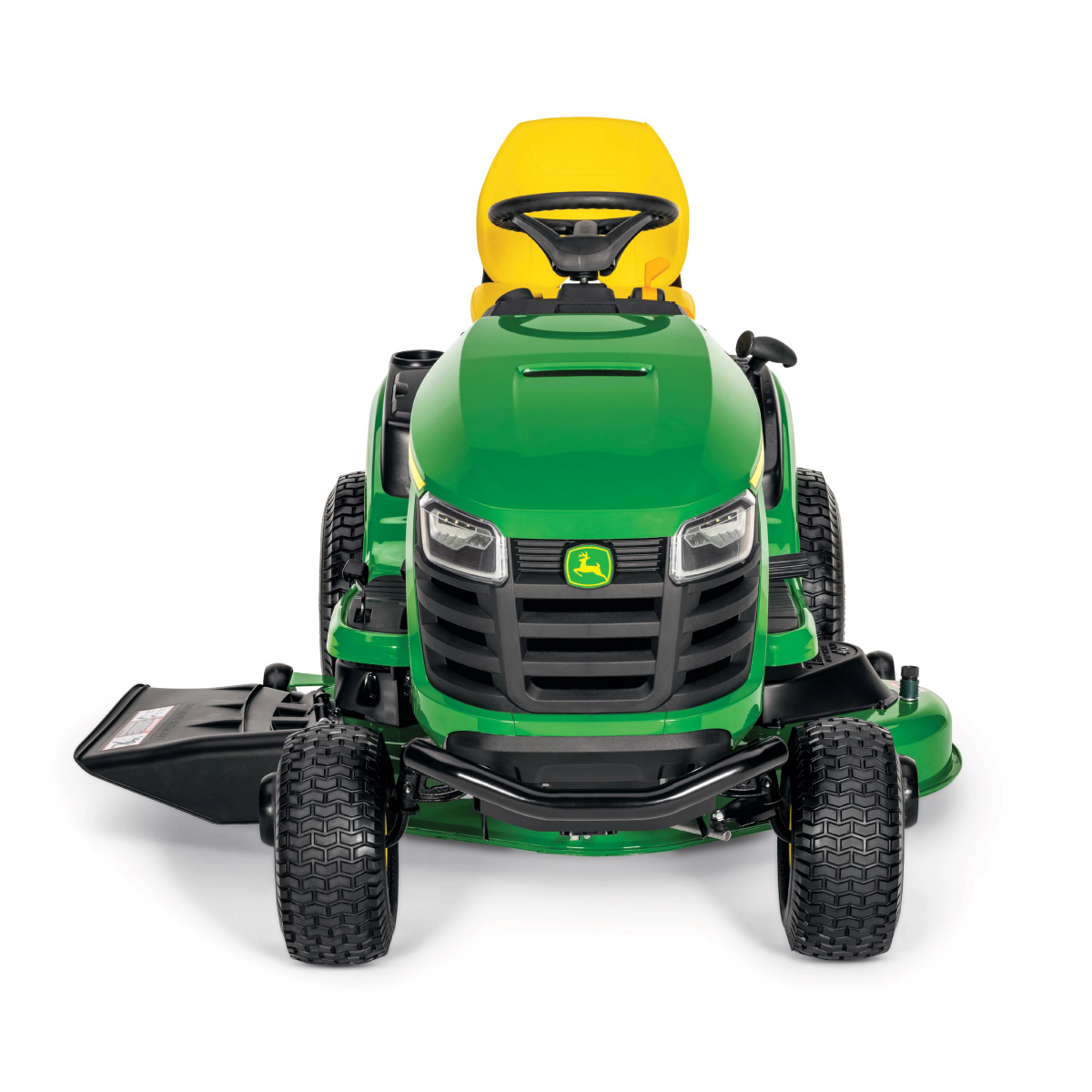

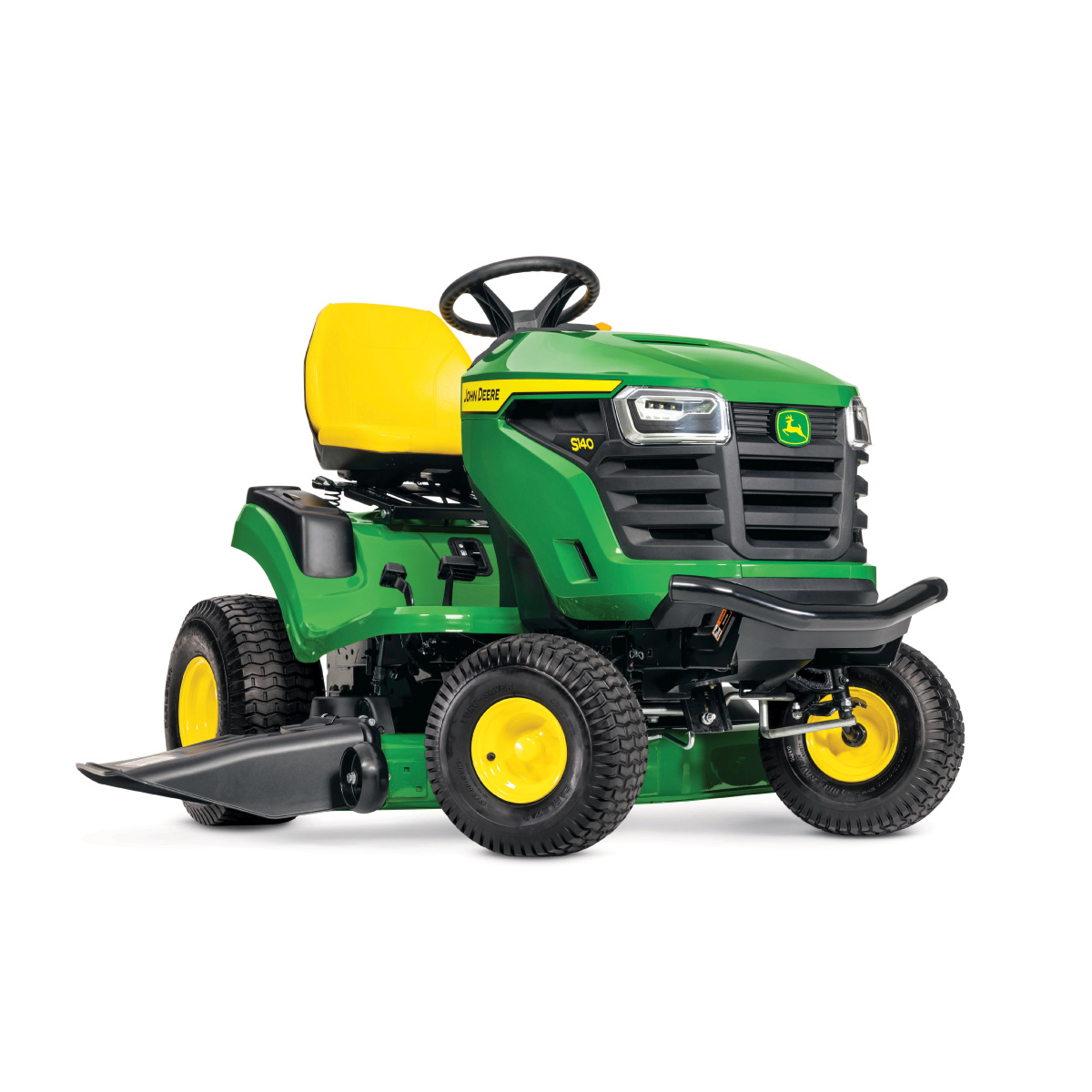

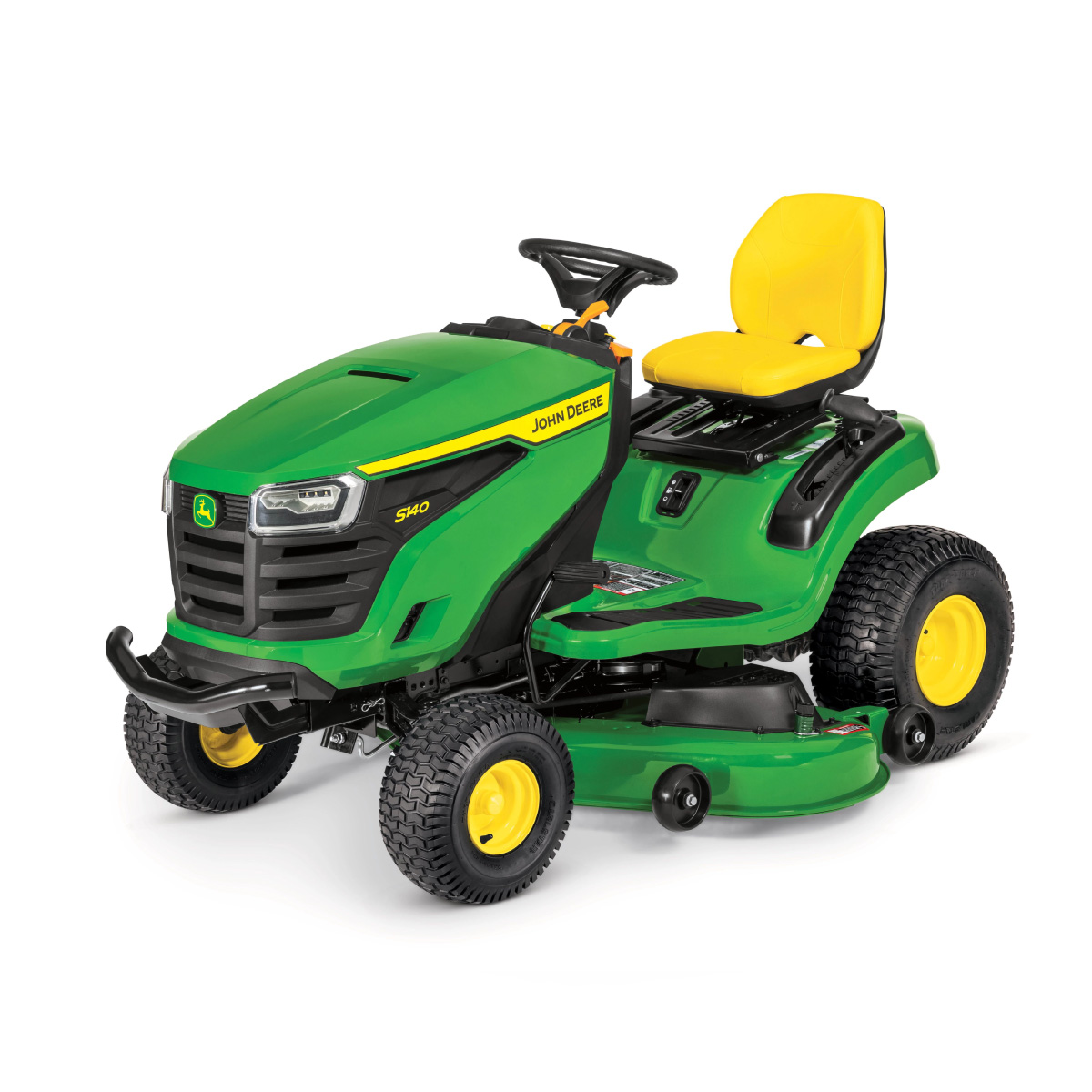

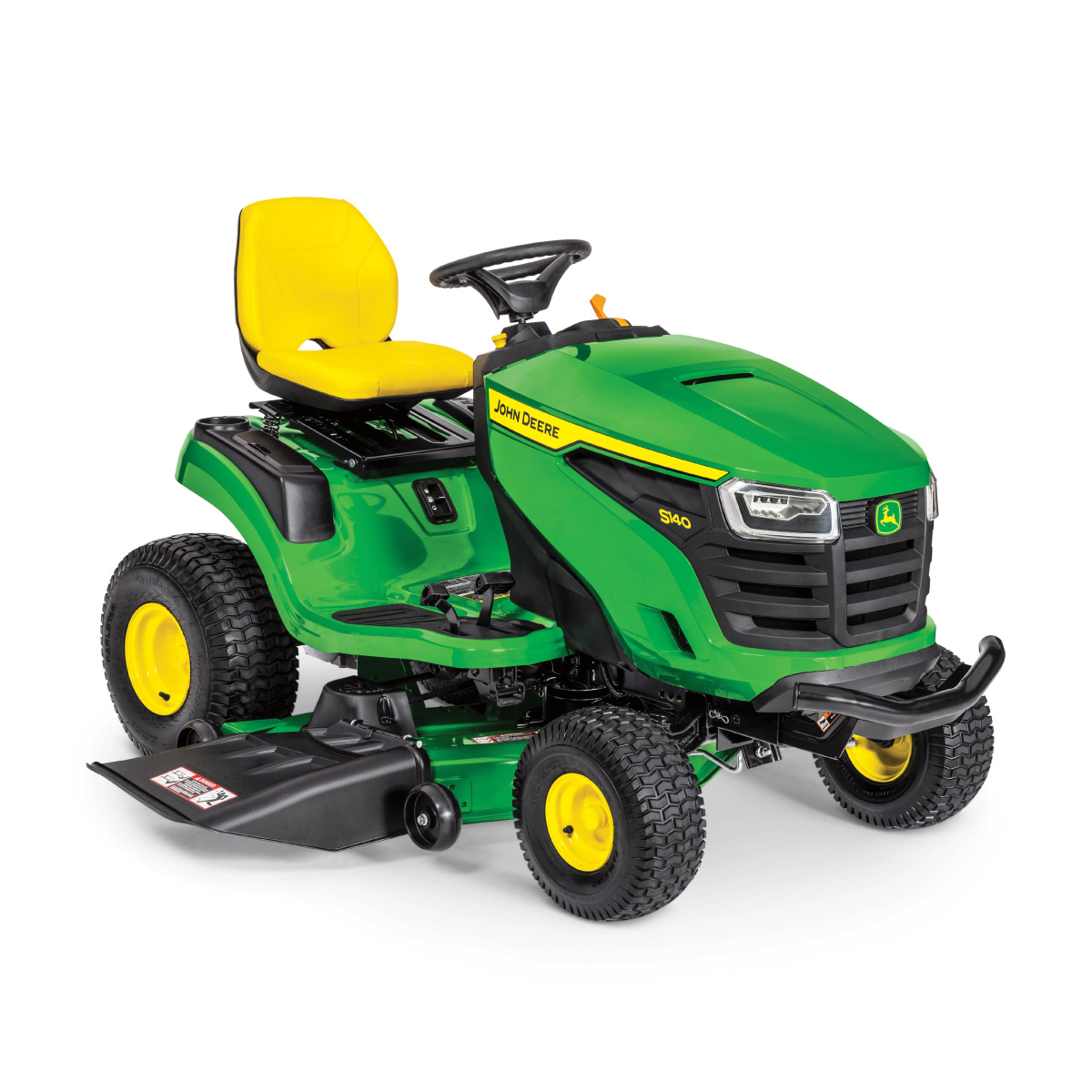

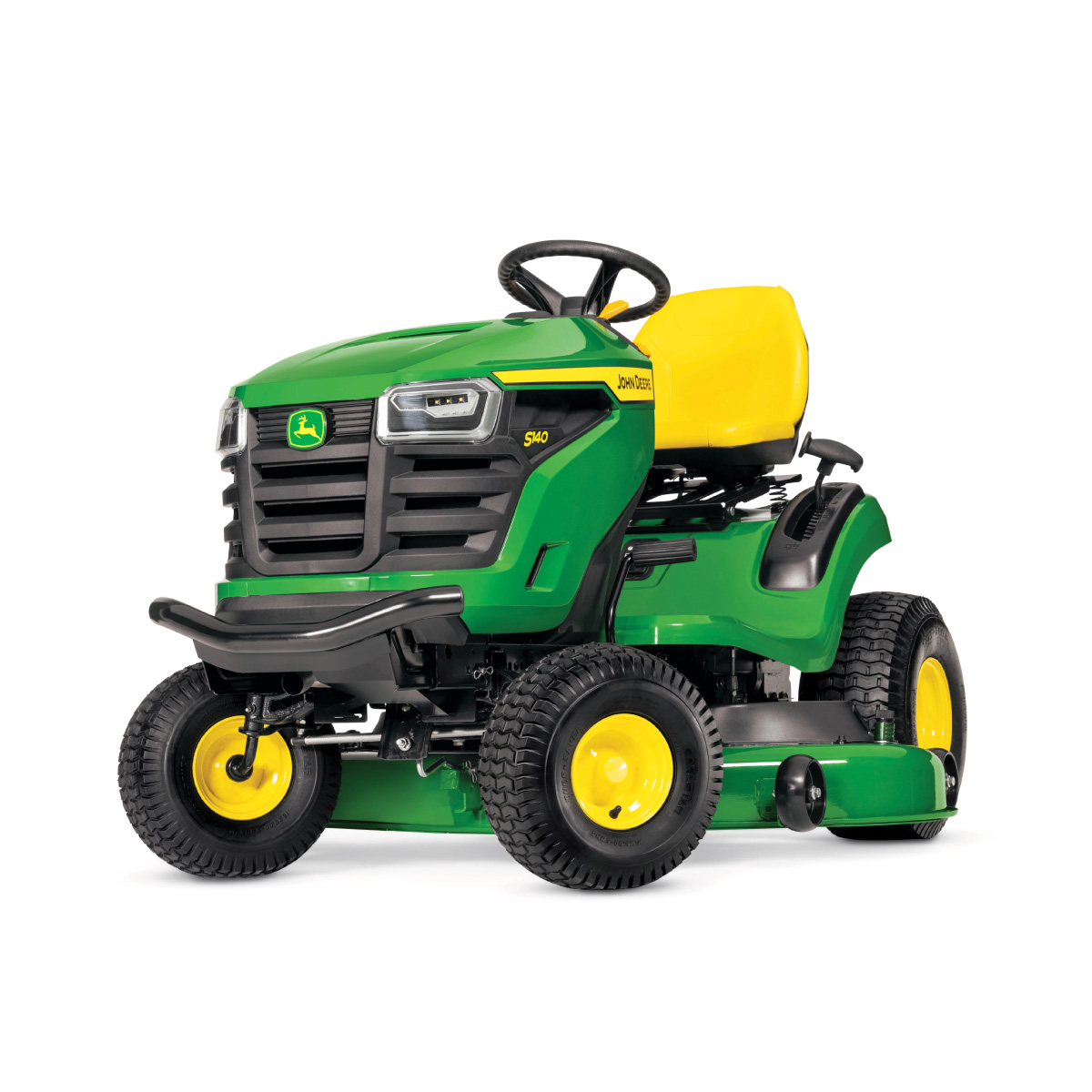

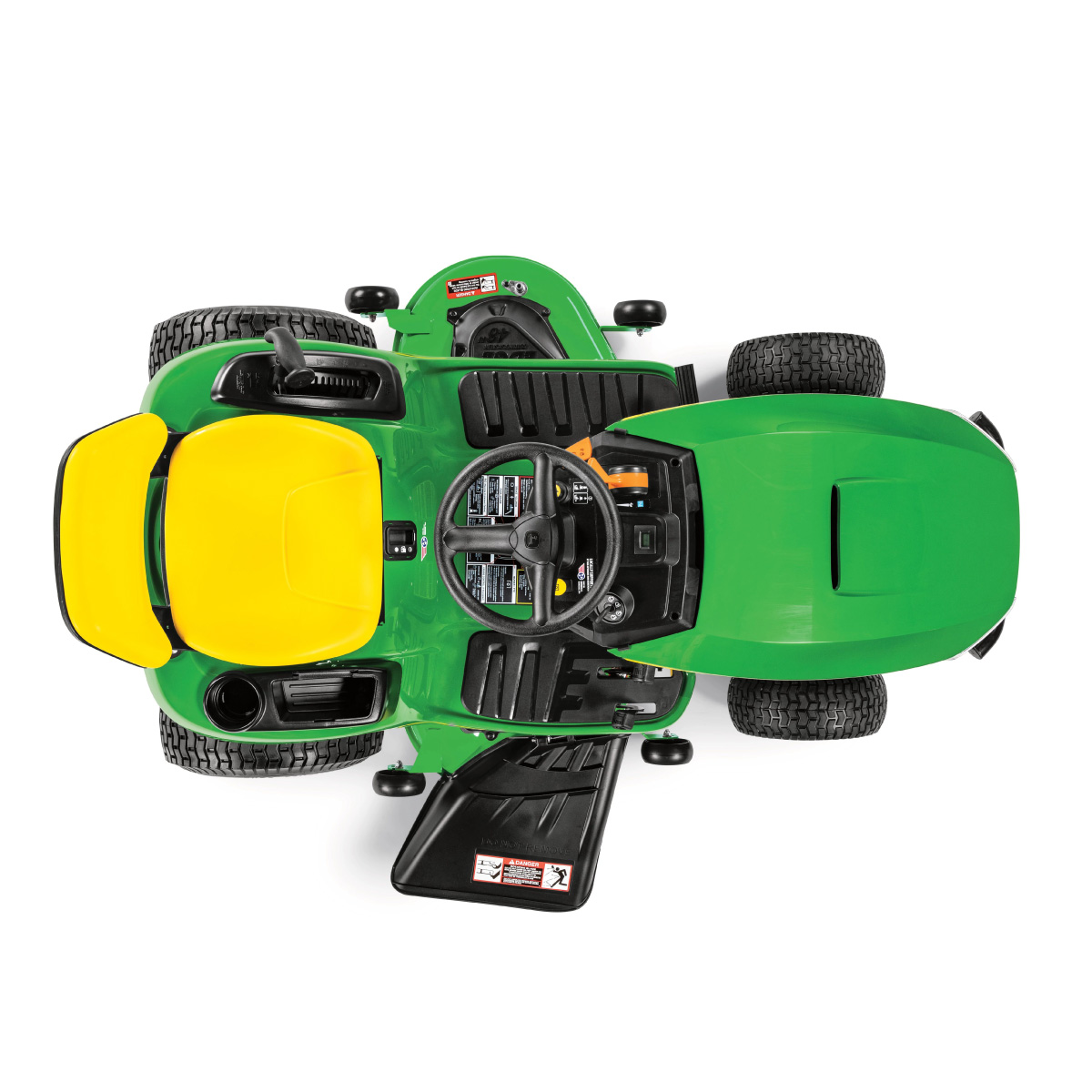

Ride-on Mower
- 16.4 kW (22 hp)* V-Twin Engine
- 122 cm (48-in.) Edge™ Mower Deck
- 2 year/120 hour bumper-to-bumper warranty
- Now available online for delivery within selected SE Queensland locations.
* Prices exclude accessories and options, include GST and are only available in Australia. Delivery not included and cost may vary by outlet. Photo may show options not included in the price. Products may not be available in all regions. Product features subject to change.
JOHN DEERE
Features
Engine is powerful and smooth-running V-twin design
A 16.4-kW (22-hp) V-twin engine provides plenty of power and torque to handle tough mowing, mulching, and bagging:
- V-twin cylinder design for greater torque, lower vibration, and improved sound quality
- Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
- No-tools oil drain system for servicing convenience
Fuel tank
- The capacity is 9.1 L (2.4 U.S. gal.).
Frame made of full-length welded steel for reliability
The front axle is constructed of solid cast iron that will not bend.
The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.
Hydrostatic transmission gives an infinite choice of ground speeds
Hydrostatic transmission
Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability.
Operator station designed for operator comfort and convenience
The operator station is designed for operator comfort and easy operation.
Controls are easy to see and use.
Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort.
Operator comfort is enhanced with a 38-cm (15-in.) high-back, two-piece seat with an open back:
- The open-back seat design keeps the operator cooler
- Especially helpful when operating the tractor for extended periods of time
- Easily adjusted forward or rearward while in the seat
- Seat travel of 14 cm (5.5 in.) and 10 different positions to adjust for operator height.
Instruments and controls are easy to find and convenient to use
The contoured dash has clean, attractive styling.
Side-by-side transmission control pedals
Side-by-side foot pedals control the speed and direction of travel:
- Automotive-type accelerator controls ensure easy operation.
- Operator can change direction without lifting foot off the platform.
- Large pedal surface gives superior operator comfort.
Mower deck height adjustment
A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height.
Parking brake control
The parking brake control is conveniently located for easy access. It holds the brake pedal securely in the locked position.
Serviceability is convenient with an easy-open hood
The seat tilts up and out of the way to make adding fuel easy.
Hood will not rust or dent, and includes quality headlights.
The Edge™ cutting system gives superior performance
The Edge cutting system has been trademarked to emphasise the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability.
The 122-cm (48-in) Edge Mower Deck is a three-spindle design with heavy-duty characteristics:
- The 12-gauge, 2.7-mm (0.105-in.) steel deck provides years of dependable mowing.
- Included three-in-one blades work well for side-discharge, mulching, or bagging.
- The blade-to-spindle design provides a unique mounting system for the mower blade that gives extra safety and convenience.
StarLock™ blade design
The StarLock blade design keeps the blade bolt at the correct torque for easy removal.
Optional blades for difficult mulching or bagging conditions are available.
Optional bagger
A cut-and-throw, 229-L (6.5-bu) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.
Two-year or 120-hour bumper-to-bumper warranty is included
An exclusive 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.
| Specifications: | |
|---|---|
| Model | S140 - 48 (Model year 2023) |
| Key Specs | |
| Engine power | 22 hp 16.4 kW |
| Oil change | No-tools oil drain with replaceable filter |
| Engine manufacturer/model | 44N677 (M44) |
| Transaxle type | TLT200 hydrostatic, two-wheel drive |
| Transaxle control | Side-by-side pedals |
| Rear tires | 20x8-8 |
| Lift system type | Spring-assisted hand-grip lever |
| Cutting width | Edge™ mower deck, 48 in. 122 cm |
| Engine | |
| Power | 22 hp 16.4 kW |
| Displacement | 44.2 cu in. 724 cc |
| Manufacturer/model | 44N677 (M44) |
| Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | V-twin |
| Governor | Mechanical |
| Choke/speed control | Single lever with spring-return on choke |
| Cooling method | Air |
| Air cleaner | Cartridge |
| Oil change | No-tools oil drain with replaceable filter |
| Fuel system | |
| Type | Gasoline |
| Fuel delivery | Pulse pump and carburetor |
| Fuel gauge | Mechanical, viewable from seat |
| Fuel tank location | Rear |
| Fuel fill opening | Center, 1.75 in. 4.45 cm |
| Fuel tank capacity | 2.4 U.S. gal. 9.1 L |
| Electrical system | |
| Battery | 12 V 300 CCA |
| Charging system | Regulated, 8 amp |
| Engine starter | Bendix type |
| Hour meter | Yes |
| Headlights | Two standard, incandescent |
| Taillights or reflector | No |
| Backup lights | No |
| Rear work lights | No |
| 12-V outlet | No |
| Transaxle | |
| Type | Hydrostatic, 2-wheel drive |
| Control | Side-by-side pedals |
| Cruise control | No |
| Oil cooler | Fins and fan on transaxle |
| Oil filter | Yes, not serviceable |
| Differential lock | No |
| Forward speed | 0-5.5 mph 0-8.9 km/h |
| Reverse speed | 0-3.2 mph 0-5.2 km/h |
| Brakes | Internal wet disk |
| Chassis | |
| Frame | Full-length welded steel |
| Primer/paint | E-coat/powder |
| Weight bracket | Optional rear |
| Receiver hitch | No |
| Front axle | Cast-iron front axle, powdered-metal front wheel bushings |
| Spindle bushings | No |
| Front tires | 15x6-6 |
| Rear tires | 20x8-8 |
| Hood material | Molded-in color material reduces sound, will not rust or dent |
| Fender deck material | Stamped steel |
| Floor mats | Yes, with debris removing channels |
| Storage | Storage tray with optional cover |
| Service interval decal | Yes |
| Fender handles/grips | No |
| Cup holder | Yes |
| Equipment mounting | CargO Mount™ system |
| Maximum towing capacity | 500 lb 227 kg |
| Steering | |
| Type | Sector and pinion with single drag link and tie rod |
| Four-wheel steer | Not available on this model |
| Steering wheel | Standard, diameter - 12 in. 30.5 cm |
| Tilt steering wheel | No |
| Turning radius | 18 in. 45.7 cm |
| Uncut circle radius | 20 in. 50.8 cm |
| Seat | |
| Type | Two piece with open-back |
| Seat back height | 15 in. 38 cm |
| Armrests | No |
| Fore-aft adjustment | While seated, 5.5 in. 14 cm |
| Seat suspension | Tilt, two coil springs |
| Lift system | |
| Type | Spring-assisted hand-grip lever |
| Hydraulic outlets | No |
| Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | No |
| Mower deck | |
| Type | Side discharge |
| Cutting width | Edge™ mower deck, 48 in. 122 cm |
| Construction | Stamped steel deck shell |
| Mower deck material | Steel, 12 gauge 0.105 in. 2.7 mm |
| Mower wash port | Yes |
| Mower drive system | Electric power take-off (PTO) clutch |
| Mower wheels | Four |
| Mower wheel adjustment | One bolt |
| Mower level adjustment | Easy-level deck |
| Mower attachability | |
| Type | Slide under tractor |
| Front draft arms | One spring clip |
| Rear draft arms | Two spring clips |
| Mower wheels rotate | No |
| Drive system | Single belt |
| Safety | |
| Meets ANSI standard | Yes |
| Meets OPEI standard | Yes |
| Backup protection | Reverse Implement Option (RIO) |
| Safety video | Yes |
| Buyer's notes | |
| Notes | Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame |
| Optional equipment | |
| Rear bagger | 2-bag, 6.5 bu 229 L |
| Mulching system | Mulch cover |
| Front blade | 46 in. 116.8 cm |
| Snow blower | Two-stage, 44 in. 111.8 cm |
| Sprayer | Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L |
| Spreader | Tow-behind only, 125-175 lb 57.7-80 kg |
| Front bumper | Included |
| Weather protection | Weather enclosure |
| Sun canopy | Sun canopy |
| Bucket holder | Yes, single bucket |
| Grass striping | Lawn striping kit |
| Tow-behind tools | 16 |
| Dimensions | |
| Height | 44 in. 1118 mm |
| Overall length | 69.7 in. 1770 mm |
| Wheelbase | 48.9 in. 1242 mm |
| Width with mower | 60.8 in. 1544 mm |
| Width with mower (deflector raised for storage) | 51.7 in. 1313 mm |
| Width without mower | 39.2 in. 996 mm |
| Weight | Mower, no fuel, 468 lb 212 kg |
| Additional information | |
| Manufacturing location | Greeneville, Tennessee, USA |
