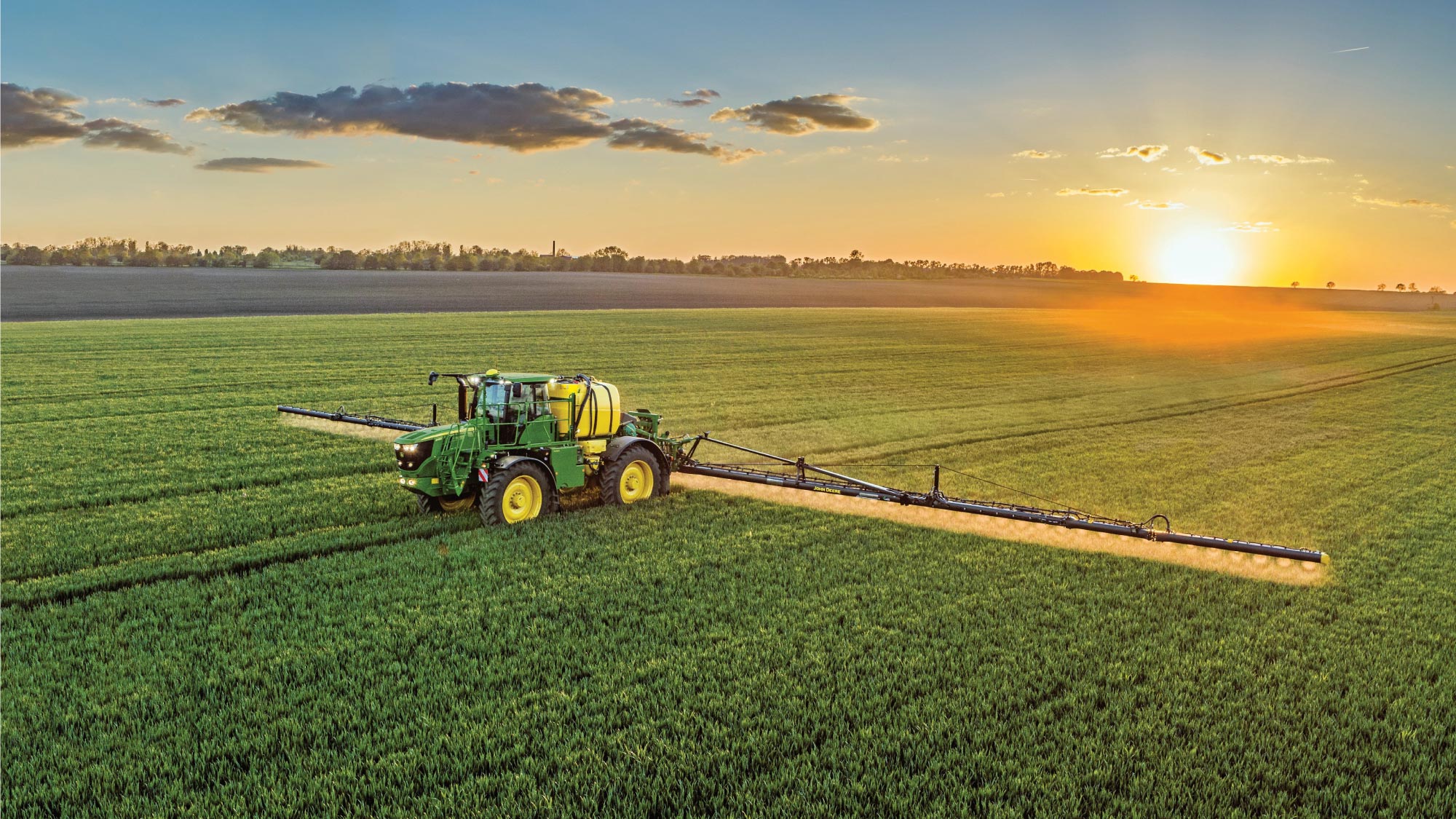

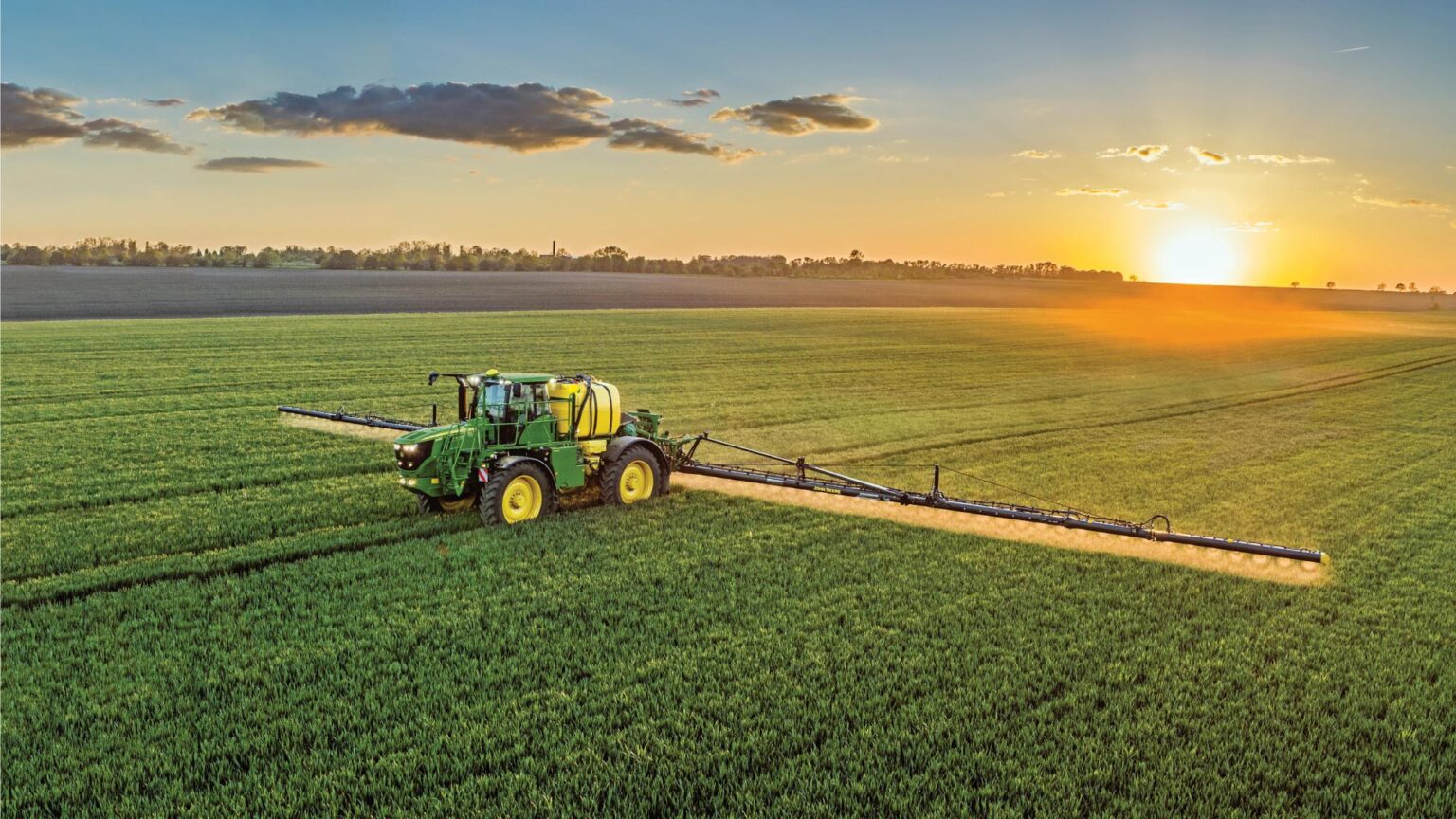

Self Propelled Sprayer

  • Fill, spray and rinse accurately and easily
  • Increased accuracy and efficiency
  • XtraFlex Individual dual strut wheel suspension
JOHN DEERE

Features


Improve coverage and minimise overlap with ExactApply™ nozzle control system

ExactApply

ExactApply’s in-cab nozzle control with manual or automatic A, B, or A+B switching saves you a lot of time and delivers ultimate application versatility. Maintain your target rate and pressure over an unprecedented range of speeds while decreasing overlap and reducing input costs.

Turn rate compensation

In conjunction with turn compensation, ExactApply automatically varies the rate across the entire boom for the correct application rate in a specific area.

Comfort, protection, and intuitive controls inside the Category 4 cab

Cradled inside the wheelbase, the comfortable and stress-free ride of the cab keeps you productive and focused. Well isolated from terrain by the XtraFlex wheel suspension and a supportive air-cushioned seat, the pressurised cab seals you in against dust, aerosols, and vapours* while powerful air filtration has you breathing healthy. And then there’s the view: totally unobstructed sightlines to your booms and front wheels keep you on track with relaxed precision.

Excellent boom control using TerrainControl™ Pro and TerrainCommand™ Pro leveling systems

TerrainControl Pro , TerrainCommand Pro, and active centreframe control complement the already exemplary mechanical boom stability of the R4140i and R4150i Sprayers. You now get fully automated boom height and roll control on the most solid and accurate spraying platform you have ever experienced. No misses, no drifting, just consistent coverage – automatically. With TerrainControl Pro and TerrainCommand Pro, the boom is always where it needs to be for optimum coverage. Purpose-designed hybrid-mode sensors simultaneously track both soil and crop, learning the crop height to prevent lowering into areas of down crop. Active centreframe control eliminates unwanted movement and prevents boom leaning during headland turns.

Automatic adjustments and a smooth ride with XtraFlex wheel suspension

XtraFlex suspension

The pneumatic, self-levelling XtraFlex independent wheel suspension has 200 mm (7.9 in.) of vertical travel for a smooth ride, whatever the conditions.

Inflate the air suspension for regular field or transport work and deflate the air suspension for safe transport when hauling the machine.

Fast filling and easy rinsing with PowrSpray™ and AirRinse™ systems

PowrSpray and AirRinse

PowrSpray allows you to fill up to 5,000 L (1320.9 gal.) in less than 5 minutes and still have all the time and clean water you need for adding chemicals and rinsing containers. When you’re finished adding plant protection products, you can rapidly top up the tank at 1,200 L/min (317 gpm). The PowrSpray dual-circuit system lets you fill the clean water tank at any time during the filling process, eliminating a major bottleneck and getting you back into the field faster.
